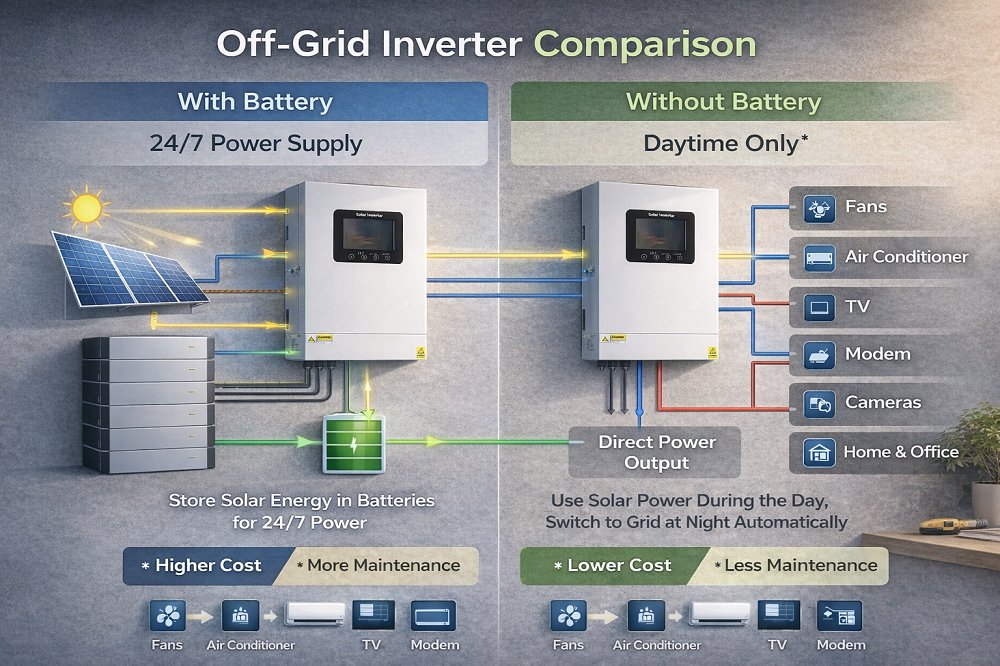

*Off-grid solar inverter (use without battery)

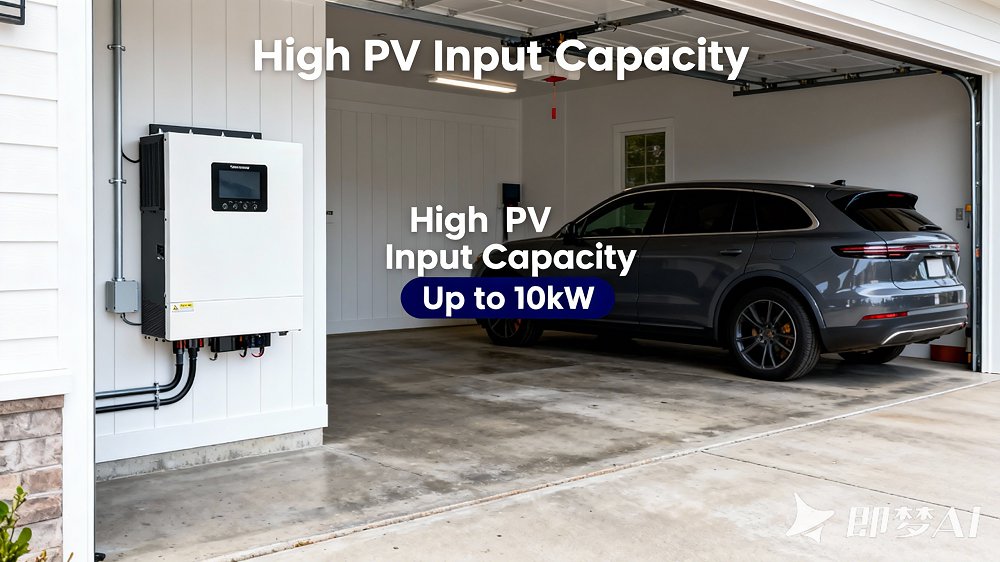

*High PV Input Capacity – Up to 10kW

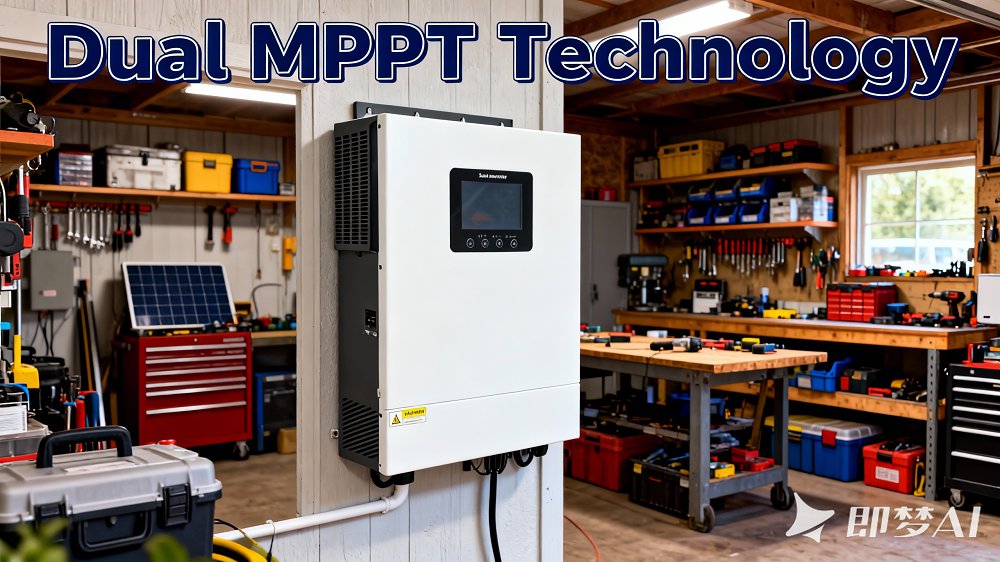

*Dual MPPT for Higher Energy Harvest
*Stable & Powerful 8kW Output
*Grid & Generator Compatible
*High Efficiency & Strong Overload Capability
*Reliable & Certified
Specifications
| Model | JY-SI8K |
| AC Input | |
| Nominal AC Input Voltage/Waveform | 230Vac/Sinusoidal (utility or generator) |
| AC Input Range | 90~280Vac |
| Max AC Input Voltage | 300Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| AC Input Frequency Range | 40~65±1Hz; (>42 or <63±1Hz comeback) |
| Max Bypass Current | 60Amp |
| Transfer Time | 25ms typical |
| On-Grid Function | |
| On-Grid mode | Yes (Default Disabled) |
| Hybrid mode | Yes（Optional External CT Required） |
| Inverter Output | |
| Rated Output Power | 8KVA/8KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage | 220/230/240 Vac ± 5% |
| Output Frequency | 50Hz/60Hz ±1 Hz |
| Peak Efficiency | 97% |
| Overload Protection | 5s@≥150% load; 10min@110% load;10s@125% load; |
| MPPT Solar Input | |
| Number Of MPPT Traker | 2 |
| MPPT Input Current | 18Amp |
| Max. PV Array Power | 10000W |
| PV Array MPPT Voltage Range | 60~450Vdc (Start-up: 120Vdc) |
| Max. PV Array Open Circuit Voltage | 500Vdc |
| Communication | |
| WiFi/APP | RJ45 PORT for connection, optional |
| Other information | |
| Safety Certification | CE |
| Operating Temperature Range | -10°C to 50°C |
| Storage temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Enclosure | IP21 |
| Dimension (D*W*H), mm | 119x397x322 |
| Net Weight, kg | 9 |
