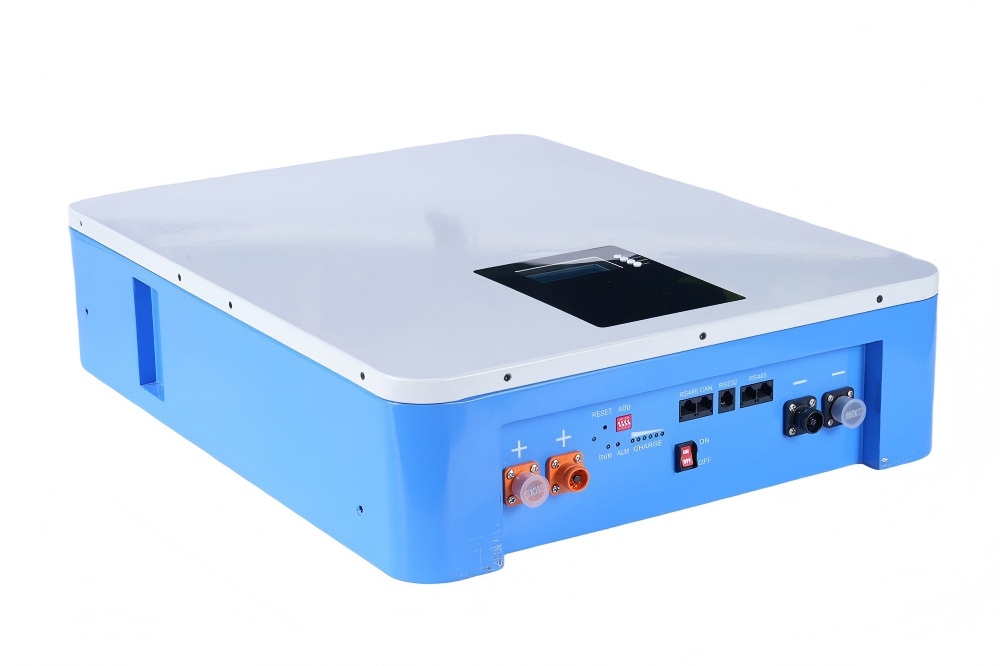

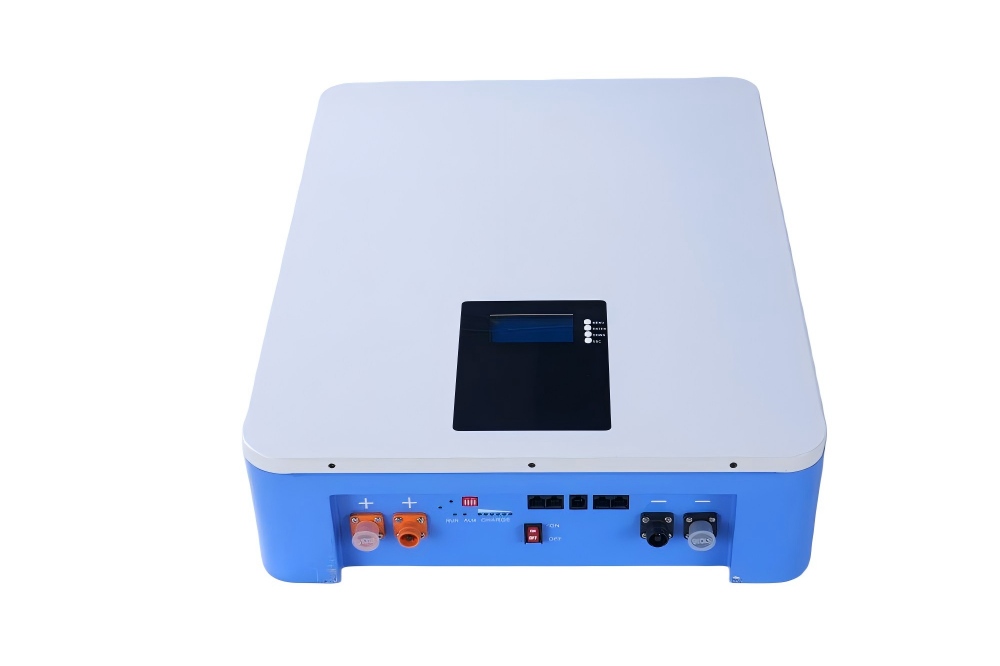

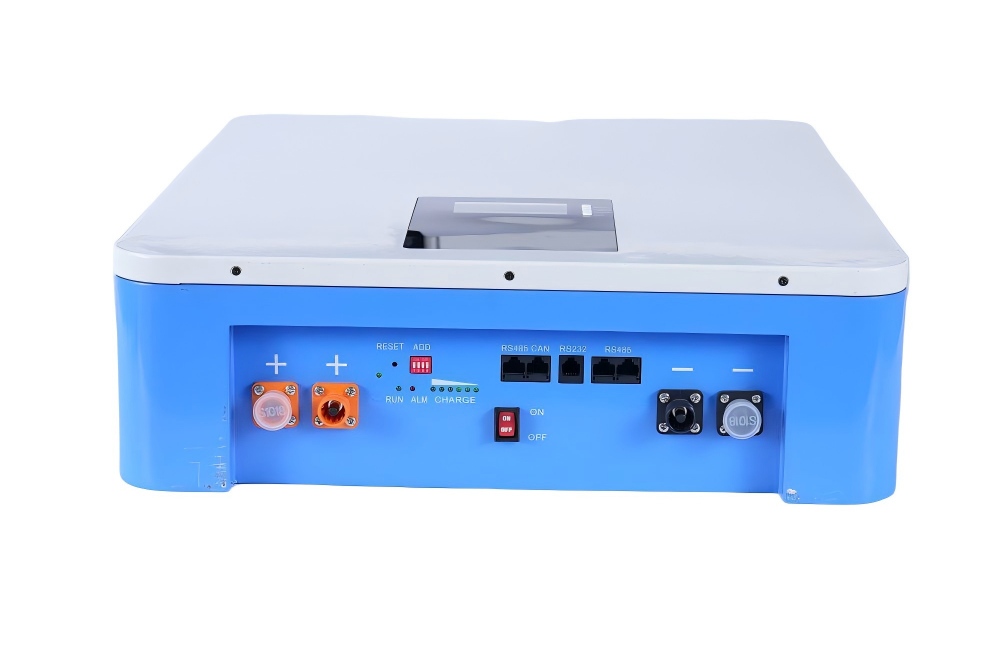

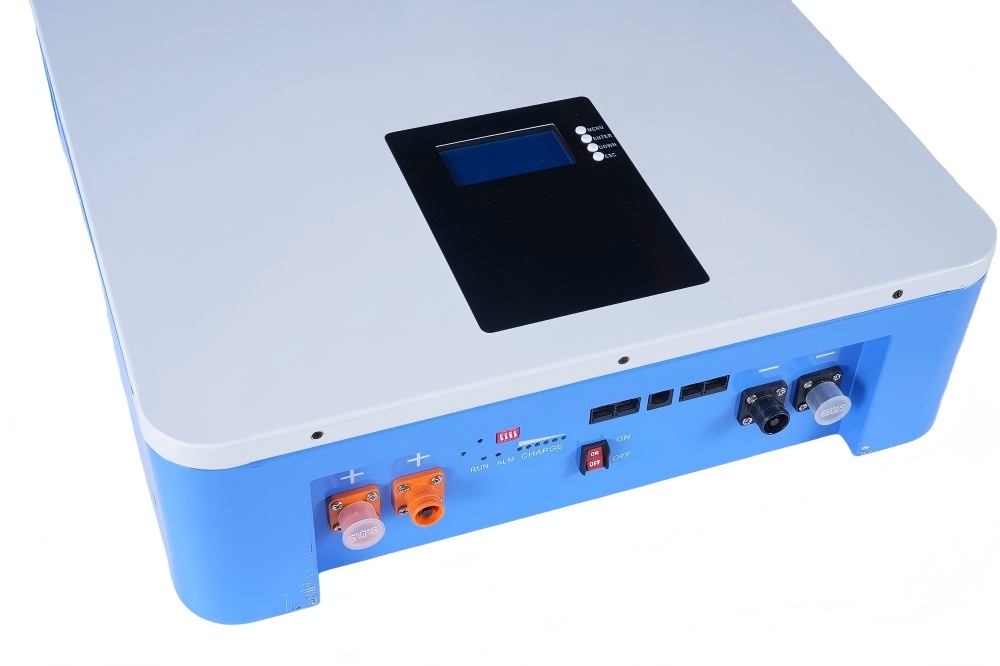

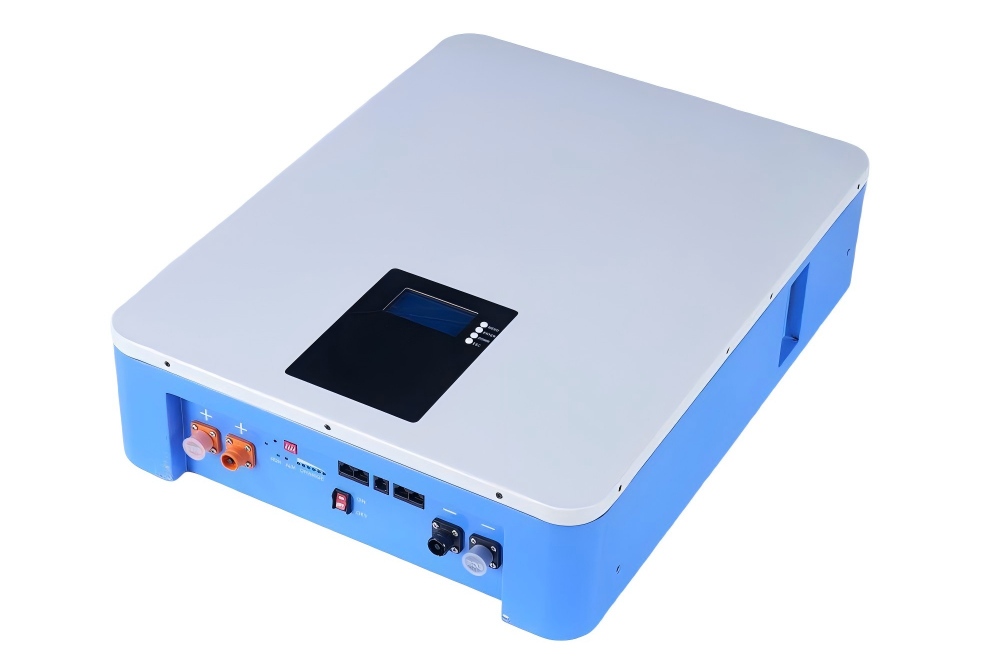

This energy storage system features a safe LiFePO4 battery, supports 100% DOD, offers high charge/discharge efficiency, and is completely
maintenance-free, ensuring reliability and ease
of use.
Specifications
| Model | JY-H5-W2 |
| Net Weight | Approx. 45 kg |
| Size | 460 mm × 600 mm × 140 mm |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh |
| Charge Procedure | CC/CV |
| Limited Charge Voltage | 57.6 V |
| Rated Charge / Discharge Current | 50 A |
| Max Continuous Charge / Discharge Current | 100 A |
| Communication | CAN, RS485 |
| Scalability | Up to 6 in Parallel |
| Cooling Strategy | Free Cooling |
| Terminal Type | Special Quick Lock Connector |
| Protection Functions | Overcharge, over-discharge, over-current, overheating, short-circuit |
| Cycle Life | 2000 cycles |
| Operation Temperature | Charge: -10~+50°C; Discharge: -20~+55°C |
| Storage Temperature | ≤1 month: -20~+35°C; ≤3 months: -20~+30°C; ≤1 year: -20~+25°C |
| Protection Rate | IP21 |
